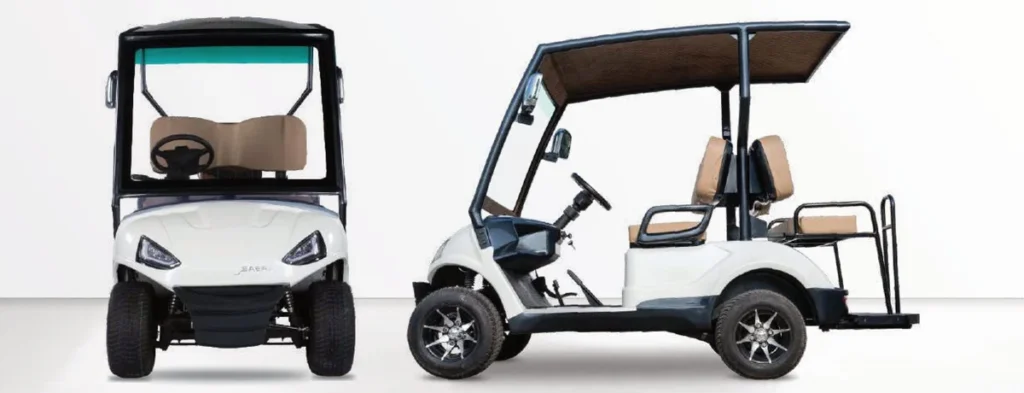

The Family Cruiser
Technical Specifications
Specification | Details |
|---|---|
| Motor (kW/HP) | 5.0 kW AC High-Torque Motor (~6.7 HP Peak Output) |
| Battery Type (Lithium/Lead-Acid) | Dry Lithium (LiFePO4) 48V — Maintenance-Free High-Density Battery |
| Controller (AC Curtis/Inmotion) | 375A AC Vector Controller with Automatic Hill-Assist & Brake Recovery |
| Range (km per charge) | 75+ km Base Operating Range (+15 km/day Solar Boost = 90 km total) |
| Speed (km/h max) | 25–30 km/h Max Speed (Governed for passenger safety & resort comfort) |
| Dimensions (L×W×H mm) | 3150 × 1200 × 1850 mm (Heavy-duty reinforced chassis frame) |
| Ground Clearance (mm) | 200 mm High Ground Clearance (Smooth crossing over speed bumps & gravel) |
| Braking (Hydraulic/Regenerative) | Regenerative Braking System + Front & Rear Hydraulic Brakes |
| Solar Roof Wattage (W) | 270W Monocrystalline High-Efficiency Solar Panel Array |
| Body Phosphating (11-stage anti-corrosion) | 11-Stage Chemical Phosphating Bath & Cathodic Electro-Deposition T |
Engineering Story & Design
Philosophy
Engineered to elevate family and group mobility, The Family Cruiser delivers a harmonious blend of seating comfort, whisper-quiet electric drive, and rugged structural integrity. Designed specifically for luxury resorts, golf clubs, and gated communities, it comfortably accommodates four adult passengers with generous legroom, deep ergonomic cushioning, and rear safety grab handles.
Powered by a robust 5.0 kW AC High-Torque motor paired with a 375A vector controller with Hill-Assist technology, The Family Cruiser climbs steep gradients and paved fort inclines smoothly without rollback. Its heavy-duty independent front suspension and rear leaf spring setup absorb bumps across uneven resort paths and cobblestone drives effortlessly.
Equipped with an integrated 270W monocrystalline solar roof canopy, this buggy continuously charges its 48V dry lithium battery pack throughout daytime operations. Combined with regenerative braking energy recovery, it delivers consistent multi-shift operation with minimal grid charging downtime.
Key Feature Highlights
-
Regenerative Braking:
Automatically captures downhill kinetic energy to recharge the lithium battery while ensuring controlled descent on steep ramp inclines. -
Dry Lithium Tech:
Maintenance-free 48V LiFePO4 battery system offering rapid 2-hour charging, high energy density, and zero acid leaks or watering maintenance -
Monocrystalline Solar Harvesting:
Integrated 270W solar roof panel generates clean electricity under direct ambient sunlight, adding up to +15 km of daily driving range. -
11-Stage Corrosion Protection:
Full chassis immersion in an 11-stage anti-corrosion phosphating process safeguards the monocoque steel frame against monsoon dampness and coastal air.
Ideal Use Cases & Destination
Suitability
-
Heritage Palaces:
Effortlessly transports families and guest groups across sprawling palace lawns, ramparts, and courtyard pathways. -
VIP Escorts:
Provides elegant, silent escort service for wedding guests, VIP families, and resort clientele. -
Safari Camps:
Delivers smooth, quiet wildlife viewing excursions and tent-to-dining transfers across rugged eco-resort grounds. -
Resort Logistics:
High-capacity daytime passenger shuttle operating continuously across large resort properties.
