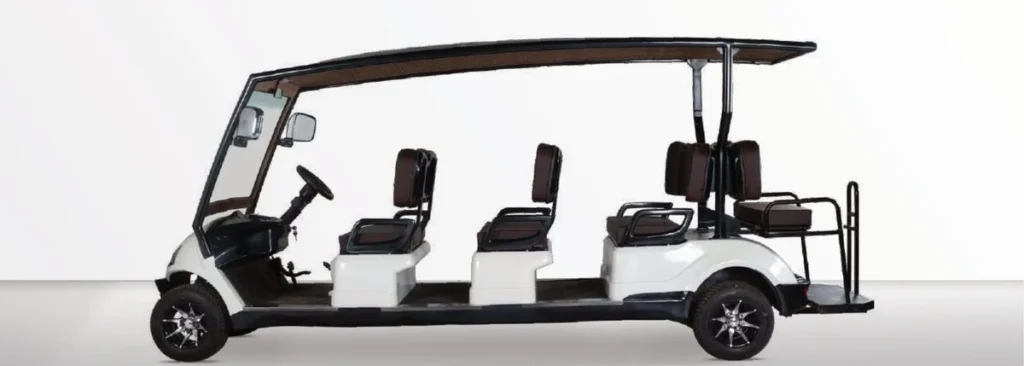

The Grand Shuttle
Technical Specifications
Specification | Details |
|---|---|
| Motor (kW/HP) | 5.0 kW AC Vector Heavy-Duty Motor (~6.7 HP High-Output) |
| Battery Type (Lithium/Lead-Acid) | Dry Lithium (LiFePO4) 72V — High-Capacity Industrial Lithium Pack |
| Controller (AC Curtis/Inmotion) | 400A AC Smart Vector Heavy-Duty Controller with Hill Hold |
| Range (km per charge) | 100+ km Base Operating Range (+15 km/day Solar Boost = 115 km total) |
| Speed (km/h max) | 25–30 km/h Max Speed (Governed for campus & resort safety) |
| Dimensions (L×W×H mm) | 4550 × 1250 × 1950 mm (Long wheelbase commercial platform) |
| Ground Clearance (mm) | 200 mm High Ground Clearance (Easily negotiates speed ramps & terrain) |
| Braking (Hydraulic/Regenerative) | Regenerative Braking + Dual-Circuit Heavy Duty Hydraulic Brakes |
| Solar Roof Wattage (W) | 400W Monocrystalline High-Efficiency Solar Canopy |
| Body Phosphating (11-stage anti-corrosion) | 11-Stage Chemical Phosphating Bath & Cathodic Coating |
Engineering Story & Design
Philosophy
As Advik Mobility’s maximum-capacity passenger flagship, The Grand Shuttle is engineered to replace carbon-emitting mini-buses across large resort properties, university campuses, and heritage complexes. With comfortable seating for up to eight passengers across four contoured bench rows, it offers superior transit throughput while maintaining zero local emissions.
Equipped with an upgraded 72V dry lithium electrical architecture and a heavy-duty 5.0 kW AC Vector motor controlled by a 400A smart vector drive system, The Grand Shuttle easily hauls full passenger loads over steep hills and long distances. Dual-circuit hydraulic brakes and heavy-duty leaf spring suspension provide exceptional safety and ride smoothness.
Top-mounted with an expansive 400W monocrystalline solar roof canopy, The Grand Shuttle harnesses maximum solar energy throughout the day, extending its range past 100+ km per charge. Its 11-stage phosphated chassis guarantees long-term durability under non-stop fleet usage.
Key Feature Highlights
-
Regenerative Braking:
Advanced dual-stage kinetic energy recovery recharges the 72V battery during deceleration and prevents slope runaway. -
Dry Lithium Tech:
High-voltage 72V LiFePO4 dry lithium system providing maximum range, fast charging, zero maintenance, and 3,500+ cycle stability. -
Monocrystalline Solar Harvesting:
Maximum-capacity 400W solar array harvested continuously to supply up to +15 km of free solar driving range every day. -
11-Stage Corrosion Protection:
Full immersion 11-stage cathodic electro-deposition phosphating guards against frame corrosion in harsh outdoor weather.
Ideal Use Cases & Destination
Suitability
-
Heritage Palaces:
High-volume shuttling for wedding parties, palace tour groups, and festival guests across vast royal grounds. -
VIP Escorts:
Transporting delegation groups, conference attendees, and corporate executives across large facilities. -
Safari Camps:
Silent group transfers through eco-resorts, safari lodges, and nature reserves without engine noise. -
Resort Logistics:
High-capacity continuous transit loop connecting lobby, villas, golf courses, and beach clubs.
