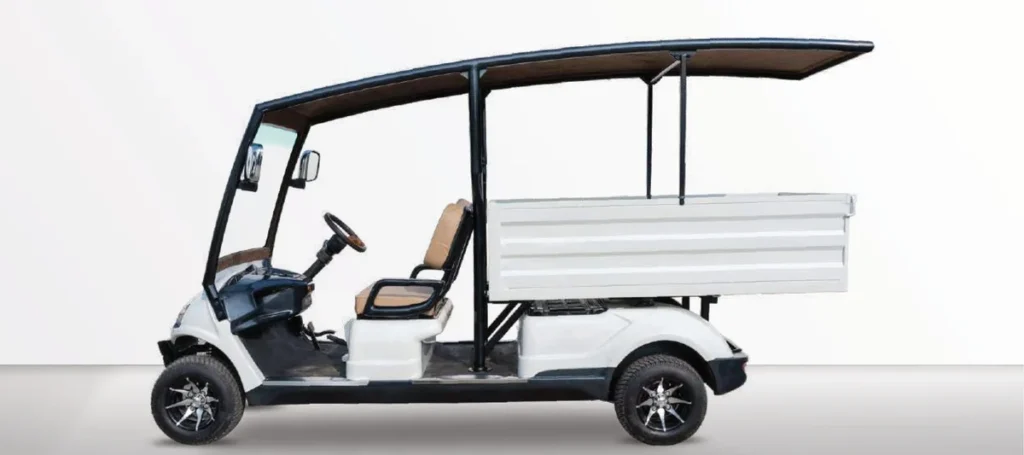

The Luggage Cart
Technical Specifications
Specification | Details |
|---|---|
| Motor (kW/HP) | 5.0 kW AC High-Torque Utility Motor (~6.7 HP Heavy-Duty Drive) |
| Battery Type (Lithium/Lead-Acid) | Dry Lithium (LiFePO4) 48V — Maintenance-Free Fast-Charging Battery |
| Controller (AC Curtis/Inmotion) | 375A AC Heavy-Duty Controller with Automatic Hill-Assist |
| Range (km per charge) | 70+ km Base Operating Range (+15 km/day Solar Boost = 85 km total) |
| Speed (km/h max) | 20–25 km/h Max Speed (Governed for utility safety & heavy load control) |
| Dimensions (L×W×H mm) | 3400 × 1250 × 1850 mm (Weatherproof 4 ft × 4 ft Aluminum Cargo Bay) |
| Ground Clearance (mm) | 200 mm High Ground Clearance (Smooth navigation over speed humps & cobblestones) |
| Braking (Hydraulic/Regenerative) | Regenerative Braking + Heavy Duty Hydraulic Brakes |
| Solar Roof Wattage (W) | 300W Monocrystalline High-Efficiency Solar Roof Canopy |
| Body Phosphating (11-stage anti-corrosion) | 11-Stage Chemical Phosphating Bath & Cathodic Powder Coating |
Engineering Story & Design
Philosophy
Hospitality logistics require heavy-payload performance without disruptive diesel engine noise. The Luggage Cart by Advik Mobility is custom-engineered to handle high-turnover baggage transfers silently and efficiently. Equipped with a heavy-duty 4ft x 4ft reinforced aluminum cargo deck, it securely transports heavy luggage sets, trunk cases, and guest equipment.
Built around a reinforced ladder-frame monocoque chassis, the cart is powered by a high-torque 5.0 kW AC motor and 375A vector controller with Hill Assist. It navigates steep resort slopes and cobblestone driveways effortlessly while safely hauling heavy cargo payloads without strain.
Integrated with a 300W monocrystalline solar canopy and 48V dry lithium battery, the Luggage Cart operates continuously across morning check-in and evening check-out shifts with minimal charging breaks. Its 11-stage phosphated body frame guarantees all-weather rust resistance.
Key Feature Highlights
-
Regenerative Braking:
Assists braking under heavy luggage loads while regenerating battery energy on downhill resort driveways. -
Dry Lithium Tech:
Zero-maintenance LiFePO4 battery pack providing high instant torque, fast charging, and zero chemical fumes. -
Monocrystalline Solar Harvesting:
Integrated 300W solar panel channels continuous charge during baggage loading, providing +15 km daily extra range. -
11-Stage Corrosion Protection:
Full 11-stage chemical phosphating treatment protects the cargo frame against luggage scuffs, rain, and humidity.
Ideal Use Cases & Destination
Suitability
-
Heritage Palaces:
Transporting heavy vintage trunks and luggage sets up palace ramps without disturbing guests. -
VIP Escorts:
Dedicated baggage escort vehicle following VIP passenger buggies from entrance gates to private villas. -
Safari Camps:
Heavy gear, supply, and baggage transit across unpaved wilderness trails and safari lodges. -
Resort Logistics:
Backbone utility carrier for daily front-desk baggage operations and guest room delivery.
